Product > Silicone extruded

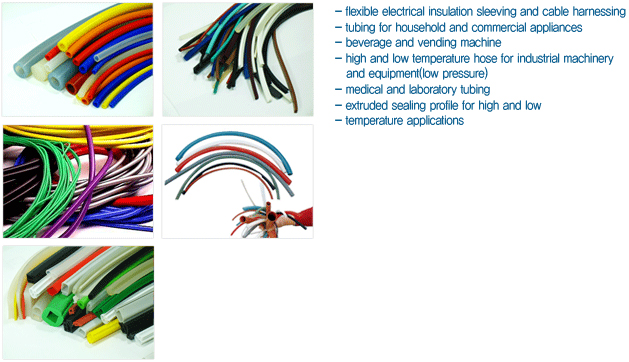

we extruded silicone polymer in both solid construction and sponge the extrusion precess,and our ability to manufacture in-house custom dies to various shapes and design,is an economical way to produce complex, continuous lengths of sealing materials

we custom-formulate compounds to meet extreme high and low temperatures, as well as color matches and solid shore A durometer ranges from 10 to 80.

we have hundreds of different shapes and sizes tooling of extruded rubber strip dies including standard sizes are avaiable for immediatly production our tooling portfolio is very wide we wil be pleased to custom manufacturers it for you immediatly.

suitable for continuous operation at temperatures from -110 F(-80 degree)
to 570 F(+300 degree) depending on grade and media
no harmful toxic or physiological effects-can be formulated within FDA
requirement for food contact or medical applications
chemically extremly stable and suitable for use with many acids and alkalis
resistant to ozone,UV and corona discharge.
electrically insulating with dielectric strength 500 V/Mil
low flammability and low smoke


tubing : internal diameter 0.010 in to 8 inch
wall thickness : 0.010 in to 0.5 inch
special capability for large diameter,thin wall sections
continuous reels or fixed lengths
reinforced for high pressure applications
cord and square section seals
custom extrusions-can be adhesive backed for easy installation
durometer,Shore A: 40-80
natural or any color(translucent or opaque)
can be overprinted
electrically conductive,oil resistant,wear resistant and chemical resistant
grade

Square Type Rubber, Horizontal Type Rubber
 General packing, Easy to .process shaping of Square, Cycle, various shapes
Round Type Rubber
 Typical Packing, Applied to Fringe etc, with over diameter 0.5mm
P Type Rubber
 Applied to Door packing, refrigerator and heating cabinet, Broad application.
Window Packing Rubber
 Packing for special glass, doors
Protection Type Rubber
 Leakage proof of rain, wind in window, door
Door Frame Type Rubber
 Buffer / prohibit & cut off influx of water, rain, dust for automobile door
Windows Frame Type Rubber
 Extrusion rubber packing prohibit & cut off influx of water, rain, dust for Car Wheel
Floodgate Type Rubber
 For Sluice gate, Dam construction

RMA Class
1
High Precision
2
Precision
3
Commercial
Drawing Designation
 E1 E2 E3
Dimensions (In Millimeters)

Above Up to
0 1.5 ± 0.15 ± 0.25 ± 0.40
1.5 2.5 ± 0.20 ± 0.35 ± 0.50
2.5 4.0 ± 0.25 ± 0.40 ± 0.70
4.0 6.3 ± 0.35 ± 0.50 ± 0.80
6.3 10 ± 0.40 ± 0.70 ± 1.00
10 16 ± 0.50 ± 0.80 ± 1.30
16 25 ± 0.70 ± 1.00 ± 1.60
25 40 ± 0.80 ± 1.30 ± 2.00
40 63 ± 1.00 ± 1.60 ± 2.50
63 100 ± 1.30 ± 2.00 ± 3.20
RMA Class
1
High Precision
2
Precision
3
Commercial
Drawing Designation
 E1 E2 E3
Dimensions (In Inches)

Above Up to
0 0.06 ± 0.006 ± 0.010 ± 0.015
0.06 0.10 ± 0.006 ± 0.010 ± 0.015
0.10 0.16 ± 0.008 ± 0.014 ± 0.020
0.16 0.25 ± 0.010 ± 0.016 ± 0.027
0.25 0.39 ± 0.014 ± 0.020 ± 0.031
0.39 0.63 ± 0.016 ± 0.027 ± 0.039
0.63 0.98 ± 0.020 ± 0.031 ± 0.051
0.98 1.57 ± 0.027 ± 0.039 ± 0.063
1.57 2.48 ± 0.031 ± 0.051 ± 0.079
2.48 3.94 ± 0.051 ± 0.079 ± 0.126

RMA Class
1
High Precision
2
Precision
3
Commercial
Drawing Designation
 L1 L2 L3
Dimensions (In Millimeters)

Above Up to
0 40 ± 0.7 ± 1.0 ± 1.6
40 63 ± 0.8 ± 1.3 ± 2.0
63 100 ± 1.0 ± 1.6 ± 2.5
100 160 ± 1.3 ± 2.0 ± 3.2
160 250 ± 1.6 ± 2.5 ± 4.0
250 400 ± 2.0 ± 3.2 ± 5.0
400 630 ± 2.5 ± 4.0 ± 6.3
630 1000 ± 3.2 ± 5.0 ± 10.0
1000 1600 ± 4.0 ± 6.3 ± 12.5
1600 2500 ± 5.0 ± 10.0 ± 16.0
2500 4000 ± 6.3 ± 12.5 ± 20.0
4000   ± 0.16% ± 0.32% ± 0.50%
Length (In Inches)

Above Up to
0 1.6 ± 0.03 ± 0.04 ± 0.06
1.6 2.5 ± 0.03 ± 0.05 ± 0.08
2.5 4.0 ± 0.04 ± 0.06 ± 0.10
4.0 6.3 ± 0.05 ± 0.08 ± 0.13
6.3 10.0 ± 0.06 ± 0.10 ± 0.16
10.0 16.0 ± 0.08 ± 0.13 ± 0.20
16.0 25.0 ± 0.10 ± 0.16 ± 0.25
25.0 40.0 ± 0.13 ± 0.20 ± 0.40
40.0 63.0 ± 0.16 ± 0.25 ± 0.50
63.0 100.0 ± 0.20 ± 0.40 ± 0.63
100.0 160.0 ± 0.25 ± 0.50 ± 0.80
160.0   ± 0.16% ± 0.32% ± 0.50%
